Integrated Gasket Molding for Reliable Waterproof Connector Solutions

In outdoor power systems, RV applications, and industrial enclosures, cable sealing is often the weakest point in the entire system. Many manufacturers struggle with inconsistent IP ratings, water ingress during field use, and unstable assembly quality. These challenges are especially common when using traditional sealing methods such as separate O-rings or RTV sealing. In contrast, integrated gasket molding provides a more controlled, repeatable, and scalable solution for sealing plastic parts in demanding environments. At DTG TECH, we utilize advanced two shot injection molding and 2 shot injection molding processes to integrate sealing directly into the product structure. This approach transforms sealing reliability from a manual assembly variable into a precision-controlled manufacturing outcome. Learn more about our plastic injection molding capabilities.

Engineering Solution: Integrated Two-Shot Cable Sealing Design

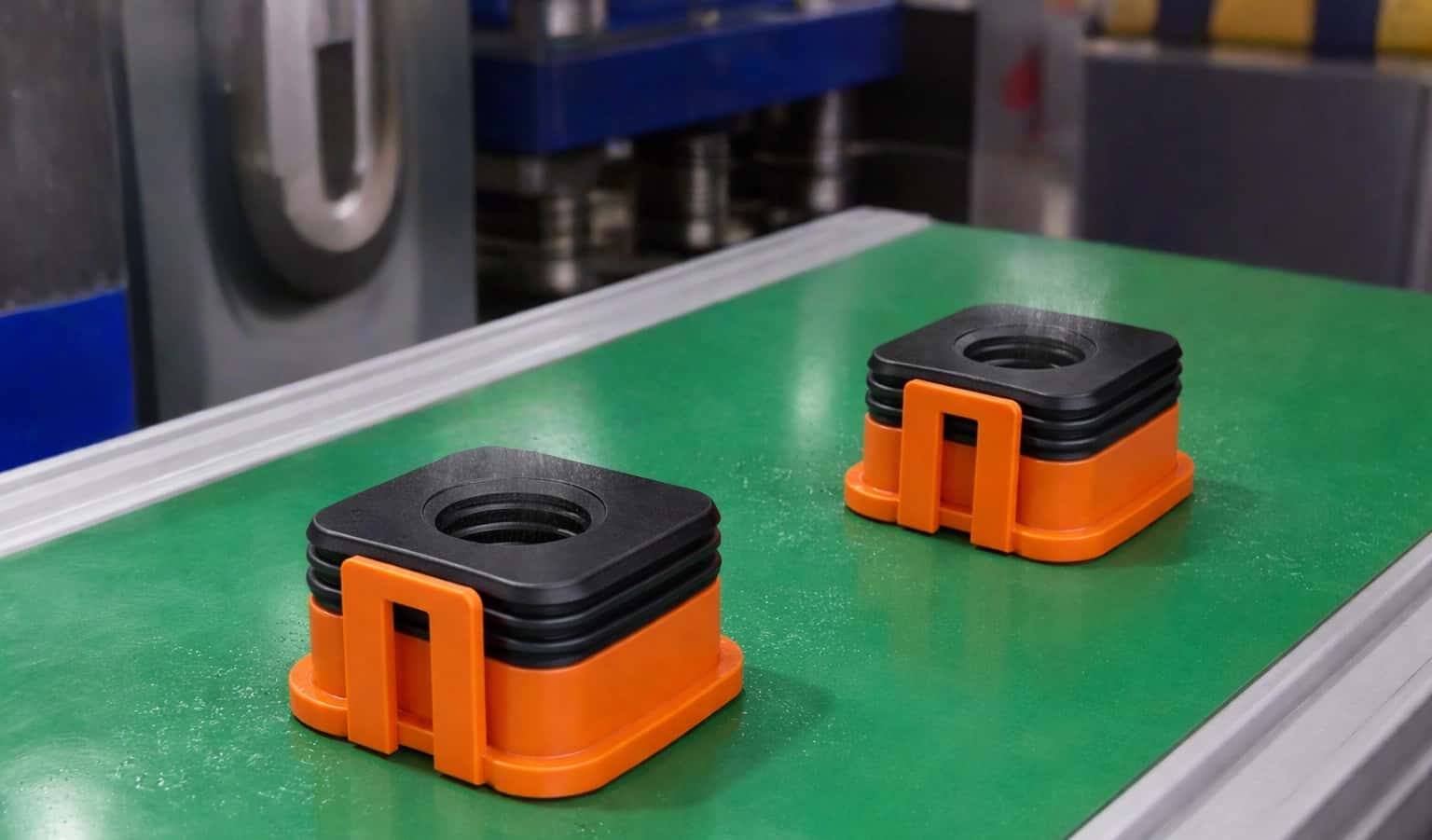

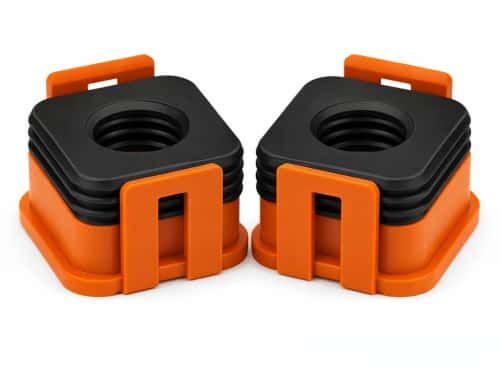

This snap-fit cable gland is designed using integrated gasket molding, combining rigid structural plastic with soft elastomer sealing in a single molding cycle. The result is a fully integrated sealing component that eliminates assembly variability and improves long-term performance.

• Hard + Soft Integration: Structural carrier (rigid plastic) and sealing layer (TPE/TPV) are molded together for precise alignment.
• Snap-Fit Installation: Tool-free assembly improves installation speed and reduces labor dependency.
• Pre-Engineered Compression: Seal compression (15–30%) is built into the design to ensure stable IP performance.
• Elimination of Loose Seals: No separate O-rings or gaskets reduces part count and assembly errors.
• Vibration Resistance: Anti-displacement design ensures sealing integrity under long-term vibration.

Structure Breakdown: Designed for Sealing Performance

The product consists of two functional zones created through 2 shot injection molding:

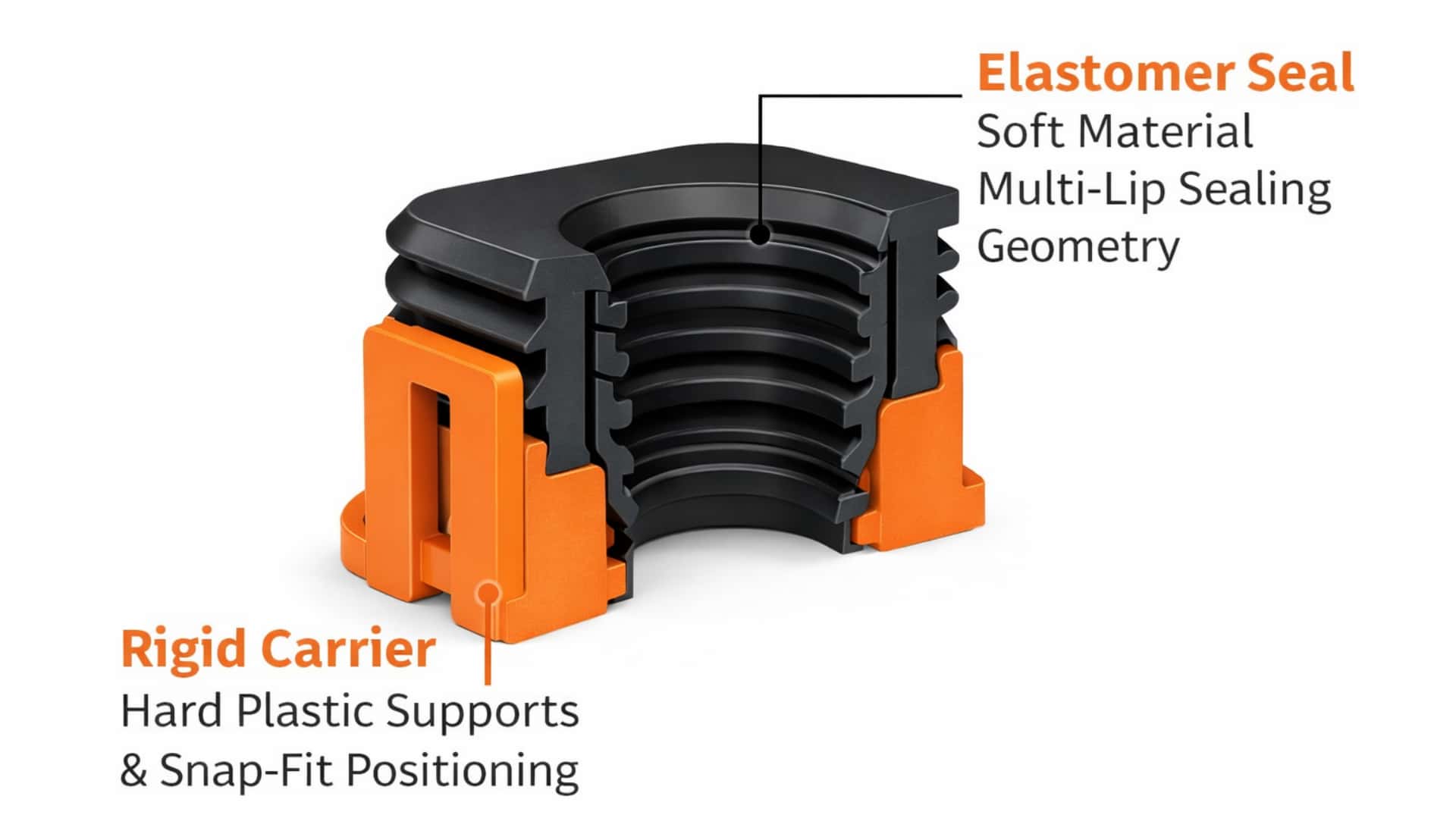

• Rigid Carrier (Hard Plastic): Provides mechanical strength, snap-fit positioning, and resistance to deformation during installation.
• Elastomer Seal (Soft Material): Features multi-lip sealing geometry that conforms tightly to the cable, ensuring radial sealing performance.

This integrated structure ensures that sealing performance is defined by mold precision rather than manual assembly, making it ideal for waterproof connector molding applications.

Integrated Gasket Molding vs Traditional Sealing Methods

Compared to conventional solutions (separate gasket + housing), integrated gasket molding offers clear advantages:

• Assembly Efficiency: One-step installation vs multi-step assembly
• Sealing Consistency: Mold-controlled vs operator-dependent
• Leak Risk: Significantly reduced
• Part Count: Fewer components simplify supply chain
• Error-Proofing: Eliminates incorrect assembly

This shift essentially replaces “operator skill” with “engineering precision,” which is critical for scalable production.

Material Selection Based on Application Conditions

Material selection is not just about compatibility—it’s about engineering performance. Based on your application environment, we recommend:

• General Outdoor Use: ABS / PA + TPE (SEBS) for UV resistance and cost efficiency
• High Mechanical Load: PA66-GF + TPV for enhanced strength and fatigue resistance
• Oil/Chemical Exposure: PBT / PA + NBR / HNBR for superior chemical resistance
• High Temperature: PPS / PEEK + FKM for extreme environments (200°C+)

We also provide bonding compatibility validation and long-term reliability testing to ensure performance in sealing plastic parts.

Quality & Certification Support for Your Project

We support projects requiring global compliance and validation:

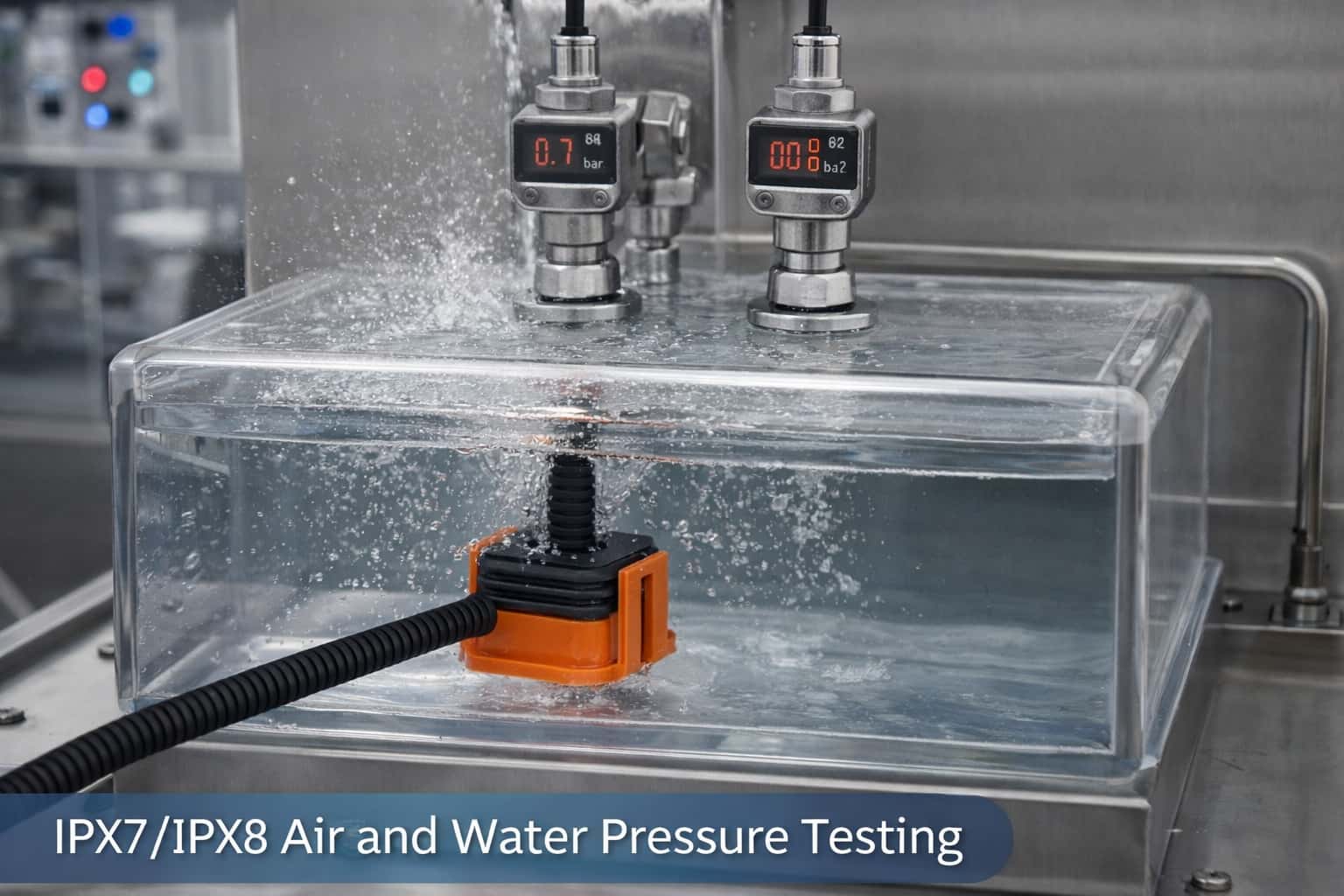

• IP67 / IP68 waterproof testing (air tightness & pressure testing)
• UL94 V0 flame retardancy
• RoHS / REACH / FDA material compliance
• UV aging, thermal cycling, and salt spray testing

Our engineering team works closely with your certification process to ensure smooth project approval. You can also explore our mold manufacturing services for precision tooling support.

Manufacturing Capability: From Design to Mass Production

DTG TECH provides more than molding—we offer full engineering support:

• DFM optimization (structure + sealing design)
• Mold flow analysis for overmolding behavior
• Bond strength testing (peel & shear)
• Multi-cavity tooling for stable mass production
• Rapid prototyping (T0 / T1 validation)

Learn more about our prototype manufacturing capabilities to accelerate your development cycle.

Common Production Issues & DTG Solutions

• Delamination: Solved through material compatibility and temperature control
• Flash: Optimized mold parting and clamping force
• Seal Failure: Compression design validation and lip geometry optimization
• Snap Breakage: Stress analysis and structural reinforcement
• Batch Instability: Balanced multi-cavity molds and inline leak testing

Applications Across Industries

This integrated gasket molding solution is widely used in:

• RV and camper power systems
• Outdoor energy storage equipment
• Industrial control boxes and enclosures
• LED outdoor lighting systems
• Telecommunication infrastructure

Start Your Waterproof Connector Project

If you are developing waterproof connector molding solutions or facing leakage and assembly challenges, DTG TECH can help you redesign for reliability and manufacturability. 👉 Send your design or request a quote 👉 Talk directly with our engineers for a tailored sealing solution
